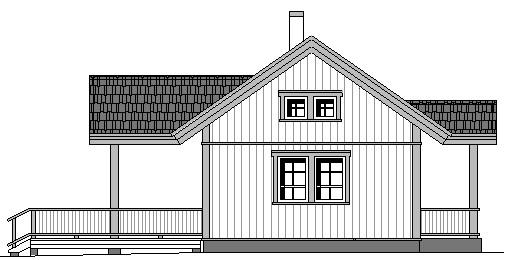

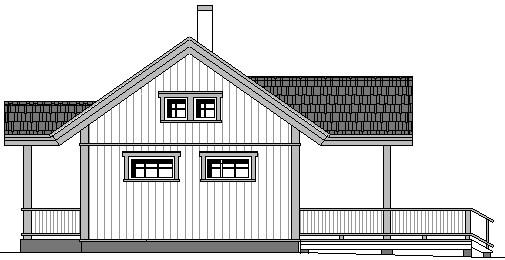

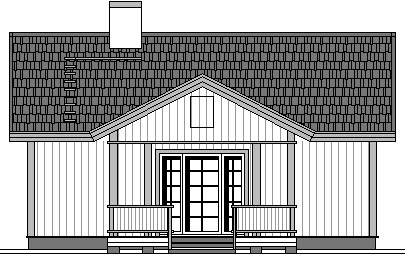

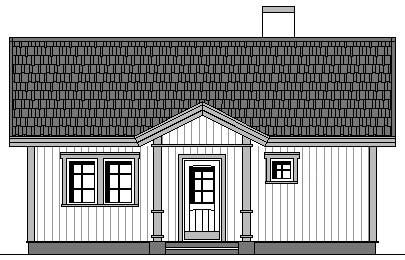

Sketch drawings: bottom plan, views and cross-section.
External walls (weatherboarding 21×148/123 mm, purlins, wind barrier, wall frame 195 mm, insulation 200+50 mm, vapour barrier, purlin 45mm)
Bearing partition walls (only wall frame)
Floor/ partitioning ceiling (beams 45×245 mm, 100 mm sound barrier wool, wood chipboard 22mm).
Roof (roof tile, stone purlin 45×45 mm, distance batten 35×45 mm, underlayer, frame 50x245mm, insulation 250+50mm, vapour barrier, purlin 50mm). Stone may be replaced with roof sheet. Chimney SIH 16/18/L.
Rainwater drainage and pipes
Wood-imitating plastic windows and wooden front door.
Transportation – a 100 km radius from Rapla.
NB! The factory package does not include installation, the base slab or VAT
